IP44 solar join
—

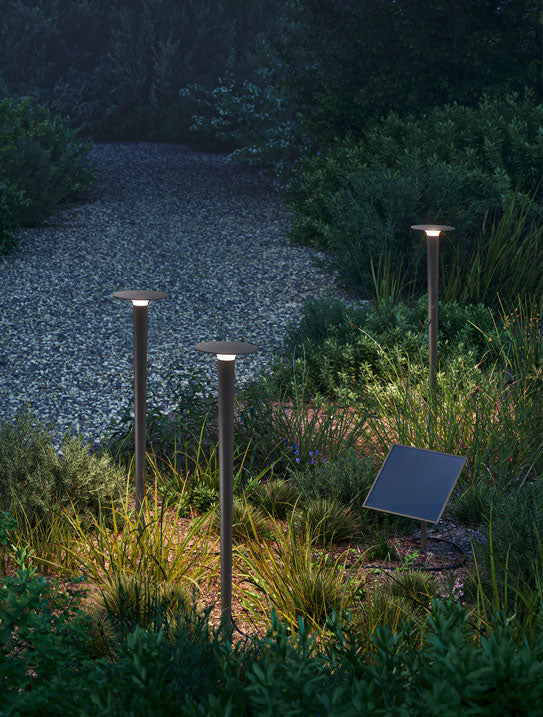

IP44 solar join opens a completely new chapter in outside lighting. In combination with up to four solar luminaires and a powerful solar panel, IP44 solar join can be used to create absolutely self-sufficient light islands, without any external power connection or conventional energy consumption.
Combinations are possible with all IP44 solar join luminaire models for completely different light moods. Seen in the light of day, IP44 solar join is thus conceivably the easiest and most resource-efficient lighting solution for gardens, roof patios, and balconies.
—
Components and Configuration
—
1. Large Solar Panel: the heart of every IP44 solar join system is the solar panel L. With its generous size of 22.5 x 22.5 cm, it captures lots of sunlight which is stored in a powerful battery. The articulated joint means it can be aligned to the current level of the sun.
2. Extension Cable: the extension cable makes it possible to extend the connection between the port and solar panel or port and solar luminaire. Available in lengths of 2, 4, or 8 metres. The distance between the solar panel and luminaire should not exceed 10 metres to avoid power losses.
3. Port: connects the solar panel L and luminaires; available as port 2, port 3, and port 4 (each with 1 plug + 2/3/4 sockets).
—
100% Climate-Positive
—
IP44 solar join offers very different solar luminaires with piek mini solar, reed solar and lix spike solar. They can be used in any combination with IP44 solar join.
IP44 solar join stores daytime light for nighttime hours. The system comes on automatically at twilight and goes off again at the latest five hours later. This also means our luminaire cluster never sheds more light than the amount of solar energy previously collected and stored.
—
Best outside light. For everyone.
—
Good news for all those who love living outdoors: all of the IP44 luminaires have a colour temperature of 2700 Kelvin. This new standard colour temperature gives due consideration to nocturnal insects while still creating atmospheric light and offering guidance.
Light is important as a guide not only for us humans but also for many kinds of animals. For example, butterflies, moths, and other nocturnal insects use moonlight to navigate at night.
—
Solar Join Components
Specs & Info FULL
| LUMINAIRES | LIGHT SOURCE | LIGHT COLOUR | LIGHT DIRECTION | BATTERY | AUTOMATIC ON/OFF | IP RATING |
|---|---|---|---|---|---|---|
| Piek Mini Solar Join | LED (4 W/240 lm) | 2700K | Forward | 1x 2600 mAh | Yes | IP65 |
| Lix Spike Solar | LED (4,4 W/260 lm) | 2700K | 360 Degrees | 1x 2600 mAh | Yes | IP65 |
| Reed Solar Join M | LED (4 W/64 lm) | 2700K | 360 Degrees | 1x 2600 mAh | Yes | IP65 |
| Reed Solar Join L | LED (4 W/64 lm) | 2700K | 360 Degrees | 1x 2600 mAh | Yes | IP65 |
| REQUIRED ACCESSORY | SIZE | COLOUR OPTIONS | HEAD MATERIAL | POLE MATERIAL | PANEL MATERIAL | IP RATING |
|---|---|---|---|---|---|---|
| Solar Panel (Large) | W225mm x H380mm | 3 | powder-coated aluminium | powder-coated stainless steel | clear glass | IP65 |
| OPTIONAL ACCESSORY | SIZES | COLOUR | CABLE TYPE | MAXIMUM CABLE DISTANCE | INCLUDES CONNECTORS | IP RATING |
|---|---|---|---|---|---|---|
| Extension Cable | 2 metres, 3 metres, and 4 metres | black | H05RN8–F 2x0,75 mm² | 8 metres | Yes | IP65 |
| Junction Port | 2 port, 3 port, and 4 port | deep black | H05RN8–F 2x0,75 mm² | N/A | Yes | IP65 |
